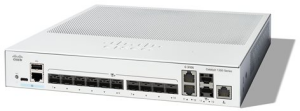

The Cisco Catalyst 1300-12XS switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE support.

Encryption Algorithm: SSL, MD5

MAC Address Table Size: 16000 entries

Jumbo Frame Support: 9000 bytes

RAM: 1 GB DDR4 SDRAM

10 x 10 Gigabit SFP(plus) 2 x combo 10 Gigabit SFP(Plus)/RJ-45

Performance: Forwarding rate (64‑byte packets): 178.57 Mpps

Switching capacity: 240 Gbps

Interfaces

10 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP(plus) SFP(plus)

2 x 10GBase-T/10GBase-X RJ-45/SFP(plus)

1 x console RJ-45

1 x USB-C console

1 x USB

1 x RJ-45

MSTP instances: 8

RPVST instances: 126

Link aggregation groups: 8

Link aggregation ports: 8

VLAN IDs: 4093

IGMP multicast groups: 2000

IPv4 routes (static): up to 990

IPv4 interfaces: 128

ACL rules: 1024

Priority queues: 8

Packet buffer size: 1.5 MB

Compliant Standards

IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
