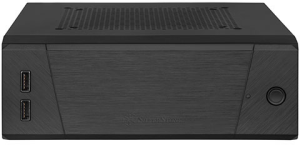

Image for illustration only. Specifications cannot be guaranteed.
» See More Product Details |
|
 |
Super small at only 2.8 liters or 3.7 liters (includes interchangeable top cover for altering case size)
Modular design creates different configurations to accommodate various compone..
>>> Read More
Super small at only 2.8 liters or 3.7 liters (includes interchangeable top cover for altering case size)
Modular design creates different configurations to accommodate various components (9.5mm slim ODD, 3.5" HDD, 2.5" SSD, 120/140mm fan)
Includes VESA mounting plate for integration with monitors
Adjustable / removable device bracket
USB 3.0 x 2
Specification
SST-ML10B (Black)
Plastic bezel, steel body
Mini-ITX
External
Internal
Right side
Left side
Top
USB 3.0 x 2
Standard top cover:
31mm (install 7mm height SSD inside)
Elevated top cover:
(1) 29mm (install HDD inside)
(2) 31mm (install 7mm height SSD and ODD inside w/o HDD bracket standoff)
(3) 36mm (Install M.2 25mm thickness 120mm / 140mm fan, w/o HDD / SSD bracket)
(4) 47mm (install 7mm height SSD inside w/ HDD bracket standoff)
(5) 63mm (install M.2, and w/o SSD / HDD / top fan)
DC board external AC adapter (sold separately)
1.4 kg
Standard top cover: 196mm (W) x 63mm (H) x 227mm (D), 2.8 liters
7.72" (W) x 2.48" (H) x 8.94" (D), 2.8 liters
Elevated to p cover: 196mm (W) x 84mm (H) x 227mm (D), 3.7 liters
7.72" (W) x 3.31" (H) x 8.94" (D), 3.7 liters
Standard top cover: N/A
Elevated top cover: 9.5mm slim optical bay
Standard top cover: 2.5" x 2
Elevated top cover: 2.5" x 2 or 3.5" x 1*
50 x 50 x 10mm x 3
Ventilation
Standard top cover: Ventilation
Elevated top cover: 120/140mm x 1 ( built-in M.2, w/o SSD)
